Small Products Play a Crucial Role in Drip Irrigation Systems: Lock Ring Connectors for Drip Tape

In today's rapidly evolving agricultural sector, the need for efficient, reliable and cost-effective solutions is higher than ever. Lock ring connectors are one such solution, and these seemingly small and unassuming components play a vital role in a variety of applications across multiple industries.

Key Applications and Benefits

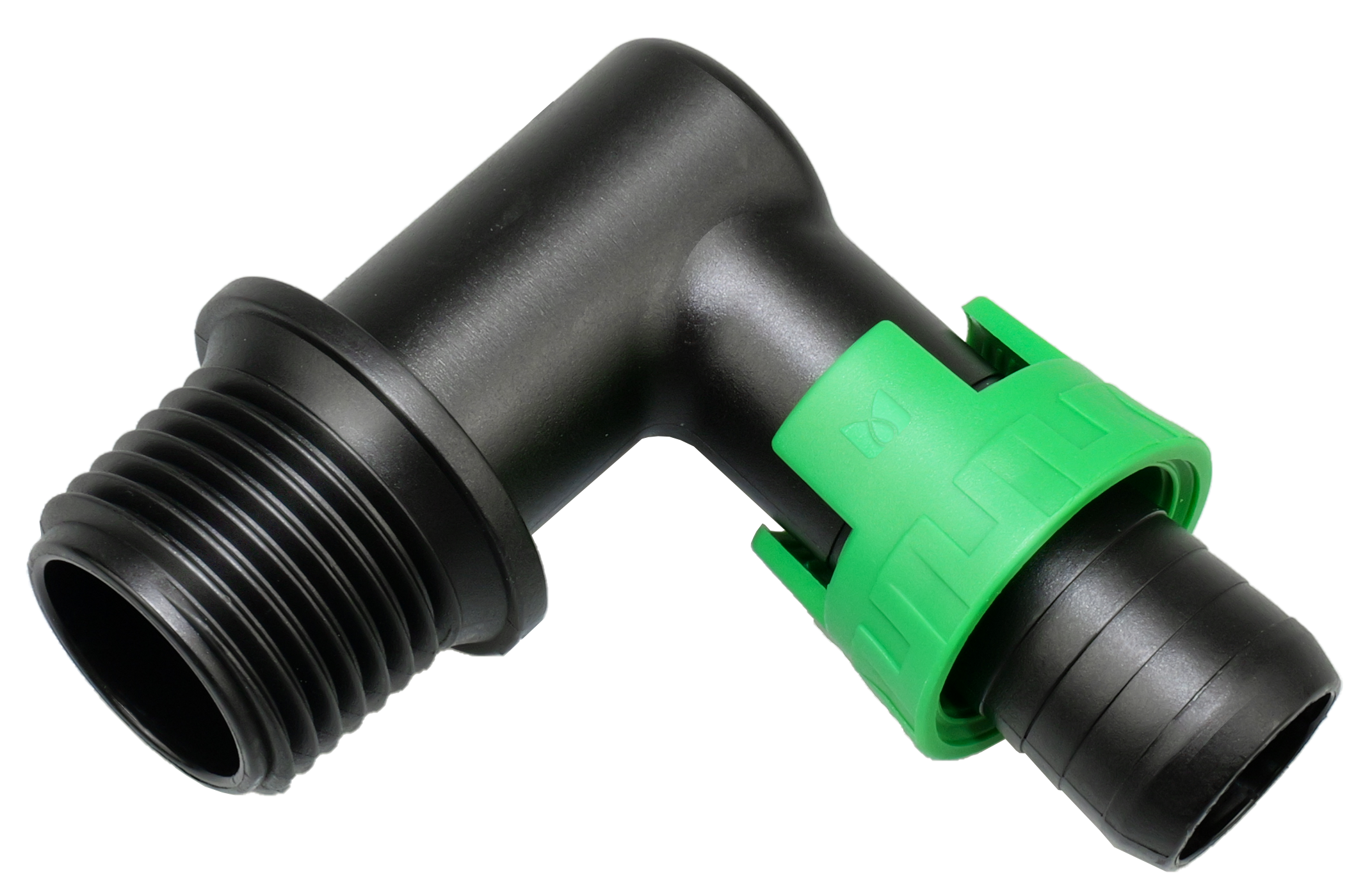

Lock Ring Elbow with Male Thread for Drip Tape

Description:

Lock ring elbow with male thread for drip Tape,high-quality irrigation fitting,a precision-engineered 90° irrigation elbow fitting designed to connect 17mm (Dn17) drip tape to 1/2" male threaded water supply lines, enabling seamless directional changes in drip irrigation systems.

Applications:

Match the outlet 1/2"female adaptor of RAFA flexible pipe,ensuring a secure and leak-free junction in drip irrigation systems.

Benefits:

• Easy to install:The design of the Male Thread makes it very convenient installation
• Made of high quality material, UV resistant.
• Leak-Proof  Design: The lock ring ensures a secure connection without leakage
• 90-degree angled design: Ensures smooth routing around corners, walls, or machinery without compromising drip tape integrity

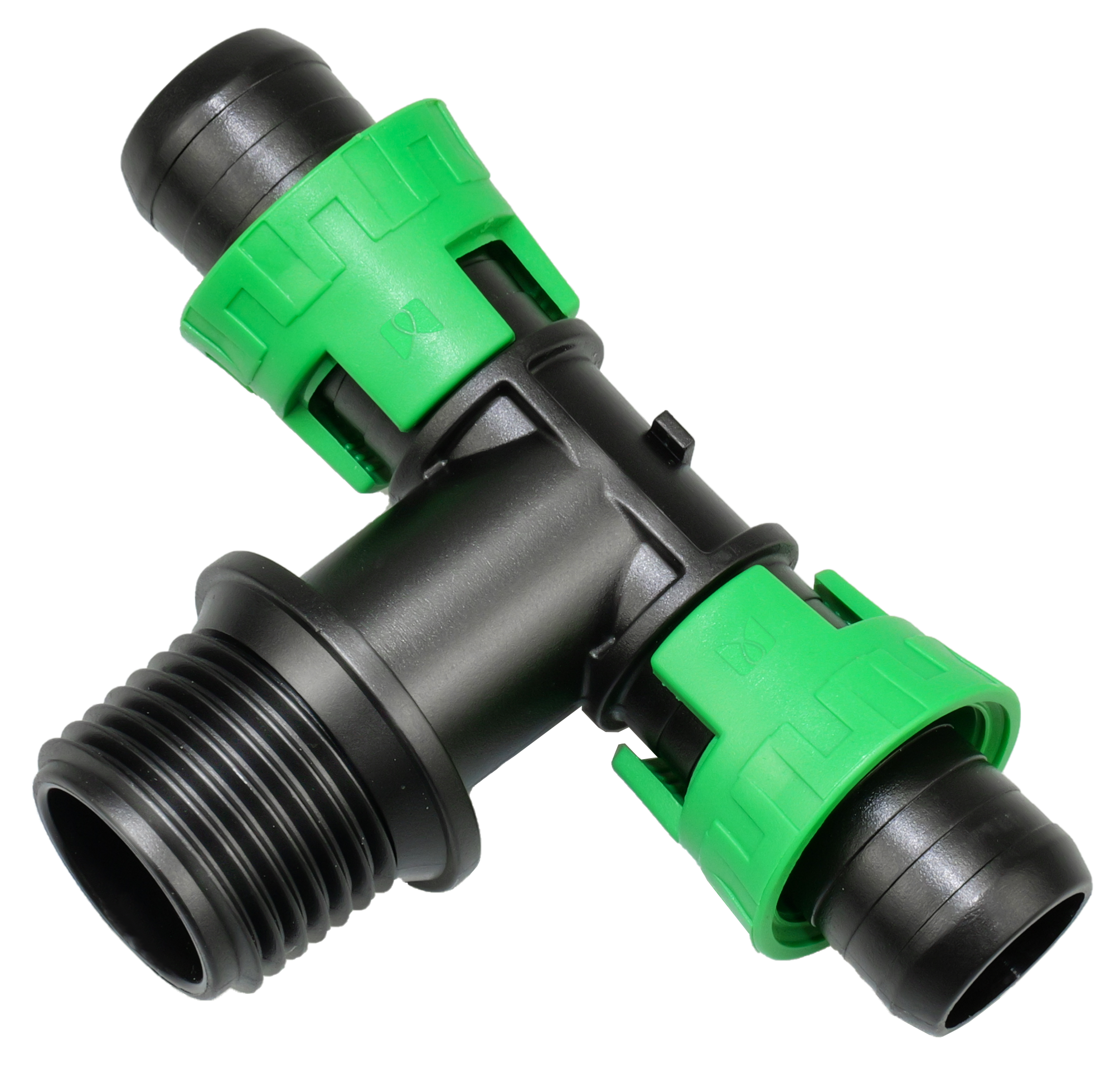

Lock Ring Tee with Male Thread for Drip Tape

Description:

Lock ring tee with male thread for drip tape high-efficiency three-way irrigation connector designed to split water flow from a single 1/2" male threaded supply line into two separate 17mm (Dn17) drip tape lines, enabling parallel irrigation for multi-row crop systems.

Applications:

Match the outlet 1/2" female adaptor of  RAFA flexible pipe,ensuring a secure and leak-free junction in drip irrigation systems.

Benefits:

• Easy to install:The design of the Male Thread makes it very convenient installation
• Made of high quality material, UV resistant.
• Leak-Proof  Design: The lock ring ensures a secure connection without leakage
• Multi-directional water supply: Can connect two drip tapes simultaneously, distributing water from a single source to reduce main pipe usage

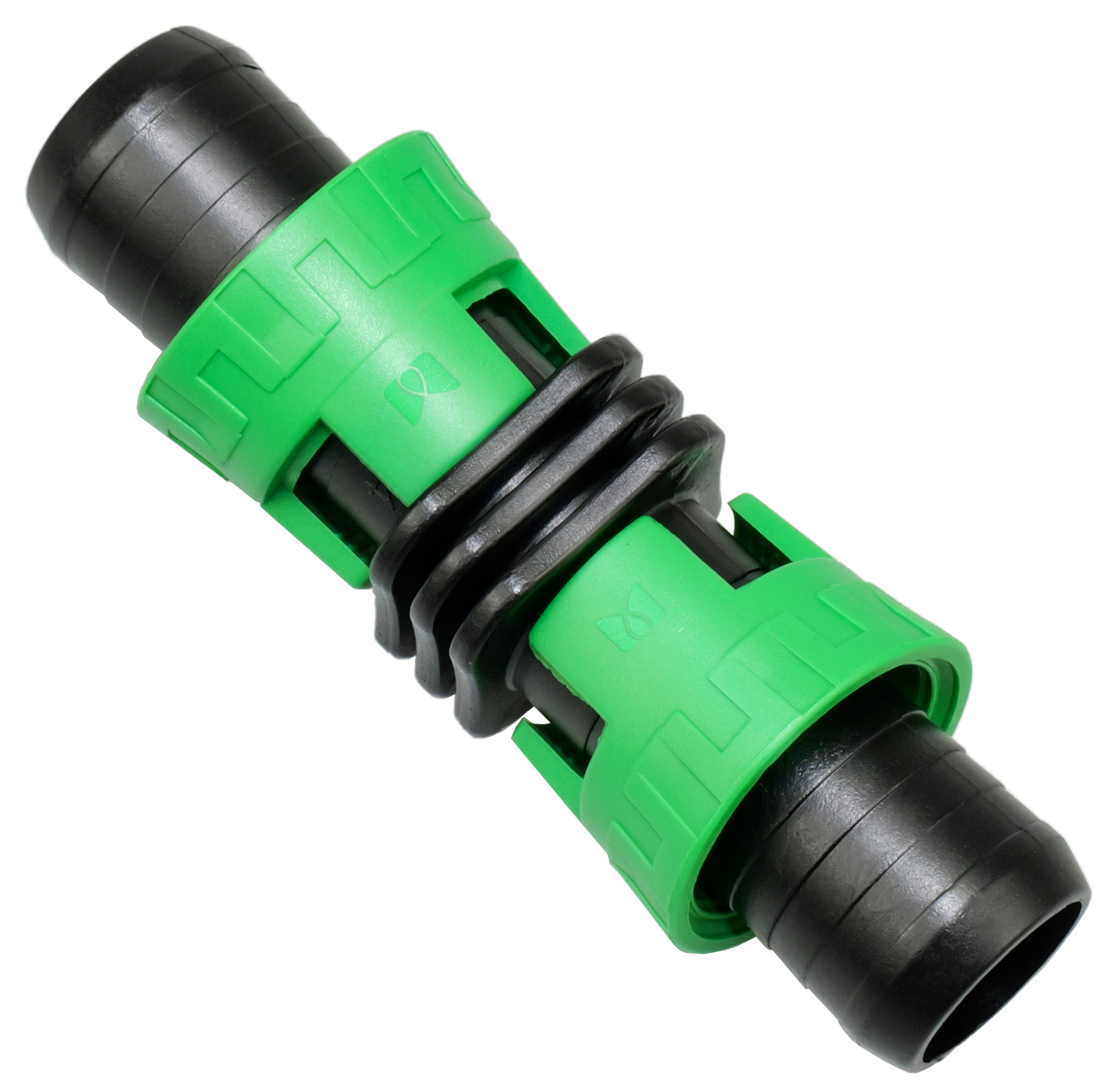

Lock Ring Coupling for Drip Tape

Description:

Lock ring coupling for drip tape,light, convenient, low value, easy-use lock ring fitting for drip tape. Made from high quality material, with UV protection and anti-aging, can be used for drip tape with thickness from 0.15mm to 0.4mm.

Applications:

In thin wall drip tape & medium wall drip tape from 0.15mm to 0.4mm .

Benefits:

• Made of  high quality material, UV resistant.
• Highly reliable connector, and very easy to handle, easily released from the pipe when required.
• Rapid Repairs: If the drip tape is damaged, simply cut out the faulty section and reconnect using the coupling
• Unlimited Extension: Can connect multiple sections of drip tape for flexible adaptation to fields of varying lengths

The widespread use of these connectors in drip irrigation systems is an inevitable trend, and with the help of these gadgets, the industry can look forward to a more efficient, sustainable and productive agricultural landscape.
